LED highbay EXPLOSION PROOF

RINLIGHT LED HIGHBAY EXPLOSION PROOF RIN-BAF SERIES
Material : Aluminium alloy explosion proof housing
CCT : 2700--6500K
CRI : ≥80Ra
Working lifetime(hours) : 50000
Input Voltage : AC85-265V
IP rating : IP66
PF : ≥0.95
Power : 50W-250W
Lamp luminous Efficiency :140Im/W
Condition Temperature :-45~55℃
Work Frequency : 50-60HZ
Beam angle : 60/90°/120°
LED : Cree
Temperature group : T6
Explosion-proof grade : Exd IIC T6 for Zone 1 and 2
Anticorrosion grade : WF2
Surge resistance factor : 6KV
Cable inlet : G3/4
ATEX Certicificate

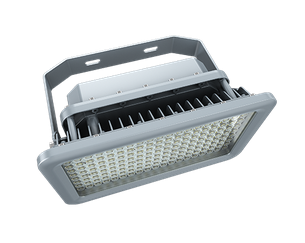

LED Floodlight EXPLOSION PROOF
RINLIGHT LED FLOODLIGHT EXPLOSION PROOF
Material : Aluminium alloy explosion proof housing
CCT : 2700--6500K
CRI : ≥80Ra
Working lifetime(hours) : 50000
Input Voltage : AC100-277V
IP rating : IP66
PF : ≥0.95
Power : 50W-280W
Lamp luminous Efficiency :140Im/W
Condition Temperature :-30~55℃
Work Frequency : 50-60HZ
LED : Cree
Temperature group : T6
Explosion-proof grade : Exd IIC T6 for Zone 1 and 2
Anticorrosion grade : WF2
Surge resistance factor : 6KV
Cable inlet : G3/4
ATEX Certificate

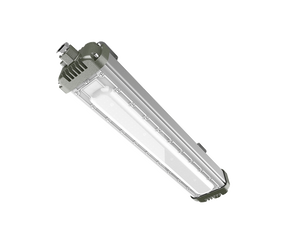

LED lINEAR EXPLOSION PROOF

IP Rating : IP66
Lamp Luminous Efficiency(lm/w) : 120
Light Source : CREE
Working Temperature(℃) : -30 - 50
Color Temperature(CCT) : 3500K-6500K
Color Rendering Index(Ra) : 75
Input Voltage(V) : 100V-240V
Product Weight（kg）: 4.1
Explosion Proof Mark : Exdemb IIC T6
Voltage : 100-240V(Customized)
Power : 20W-60W
Material : Aluminium
Protection Class : IP66
Size : 635*125*77mm

PORTABLE LIGHTING EXPLOSION PROOF

  • Zone 0 ready — Certified ATEX/IECEx (II 1G Ex ia IIC T4 Ga / Ex ia IIC T4 Ga) and UL913 Class I Div 1; Class I Zone 0 AEx ia IIC T4 Ga.
  • Portable & quick to deploy — Retractable mast (min ~566 mm, max ~909 mm shown) with 360° rotating head and multiple deployment positions.
  • Long runtime — Up to 10 hours (Low); 5 hours (High) from Ni-MH 10.8 V, 9 Ah pack; visible low-battery indicator
Applications
  • Confined hazardous spaces
  • Tank entries
  • Underground & tunnelling
  • Refinery & petrochemical maintenance
  • Emergency response in Zone 0 areas

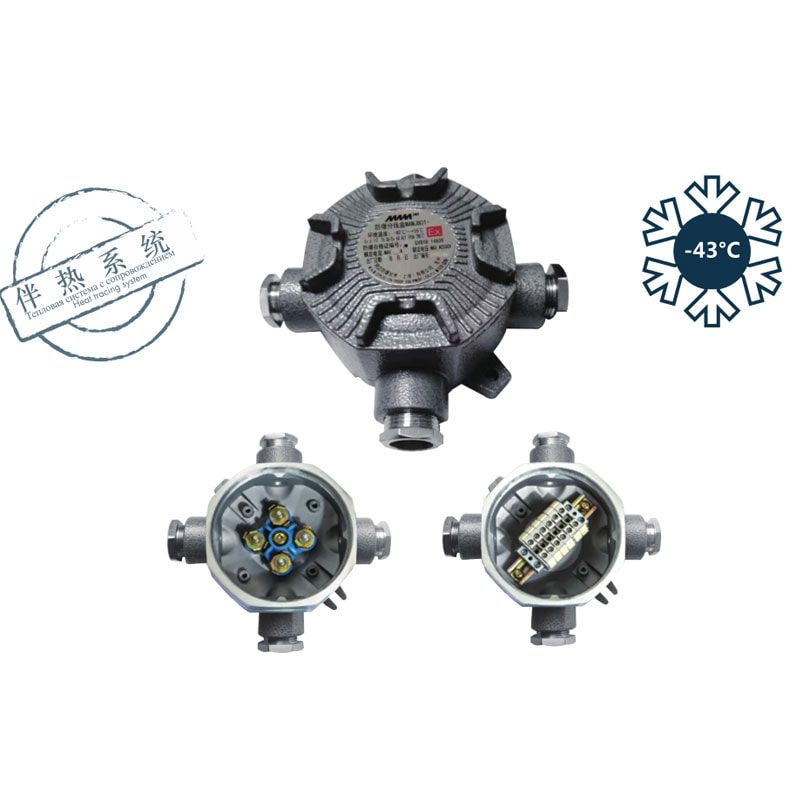

JUNCTION BOX exd tYPE AND ACCESSORIES

Enclosure material: Aluminium alloy ZL102
Ex-marks: Ex db IIB+H2 T6...T4 Gb;Ex tb IIIC T80°C...T135°C Db IP66
Certificate:ATEX,IECEx and TR CU
Max Current:1500A
Max Power consumption:800W

mOBILE pHONE EXPLOSION PROOF

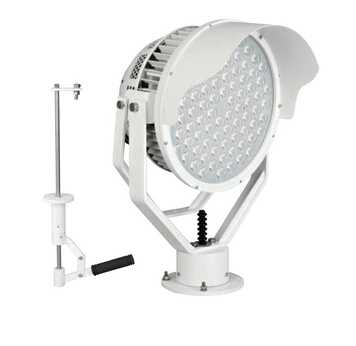

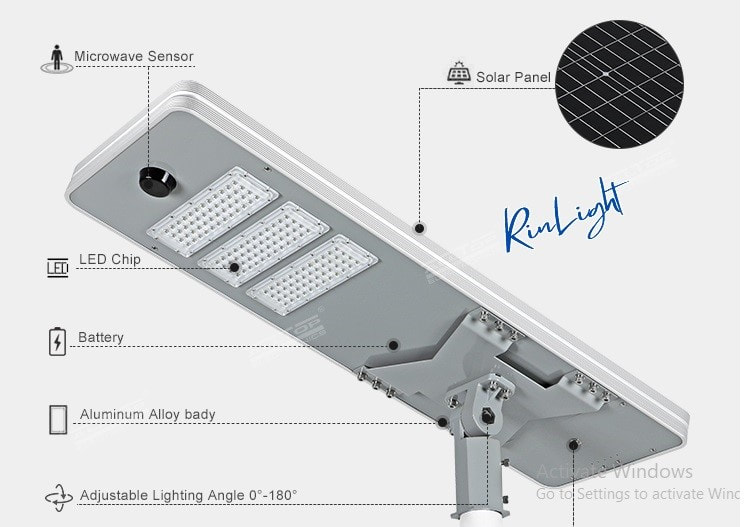

Aviation obstacle light Marine Lantern, Searchlight, PJU Solar Panel all in one
